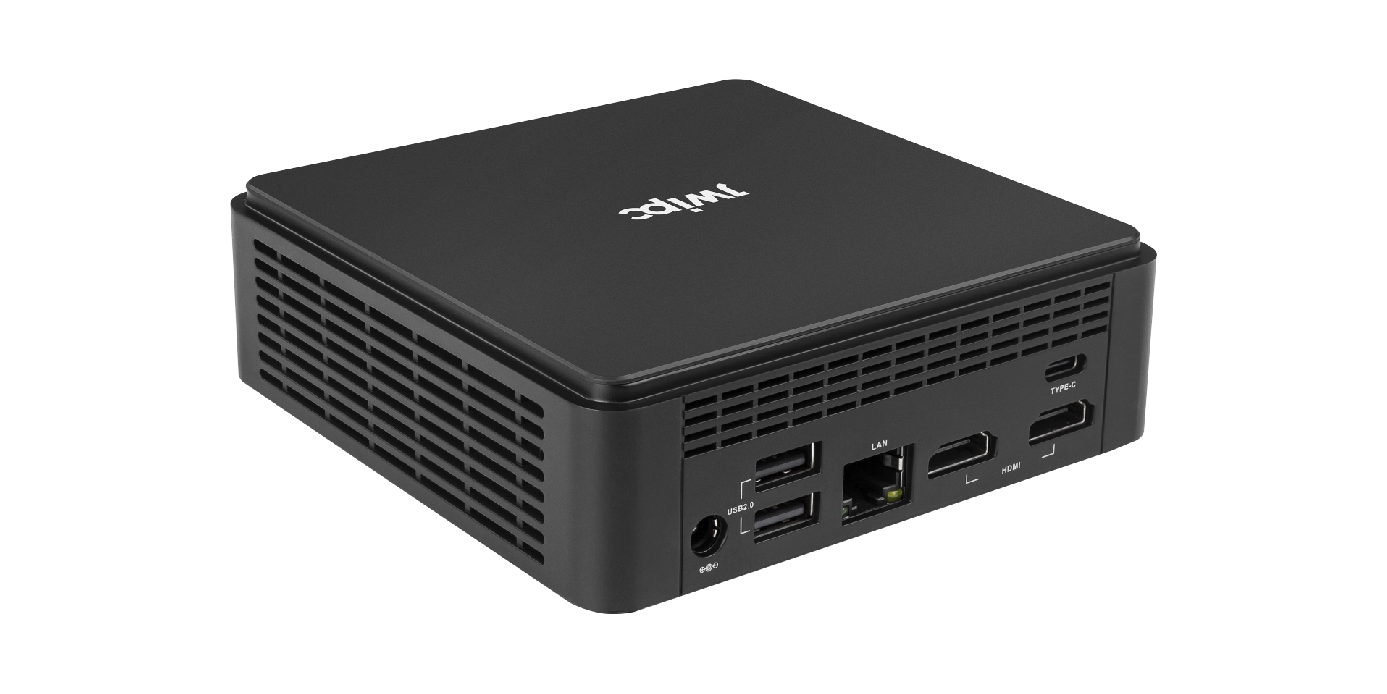

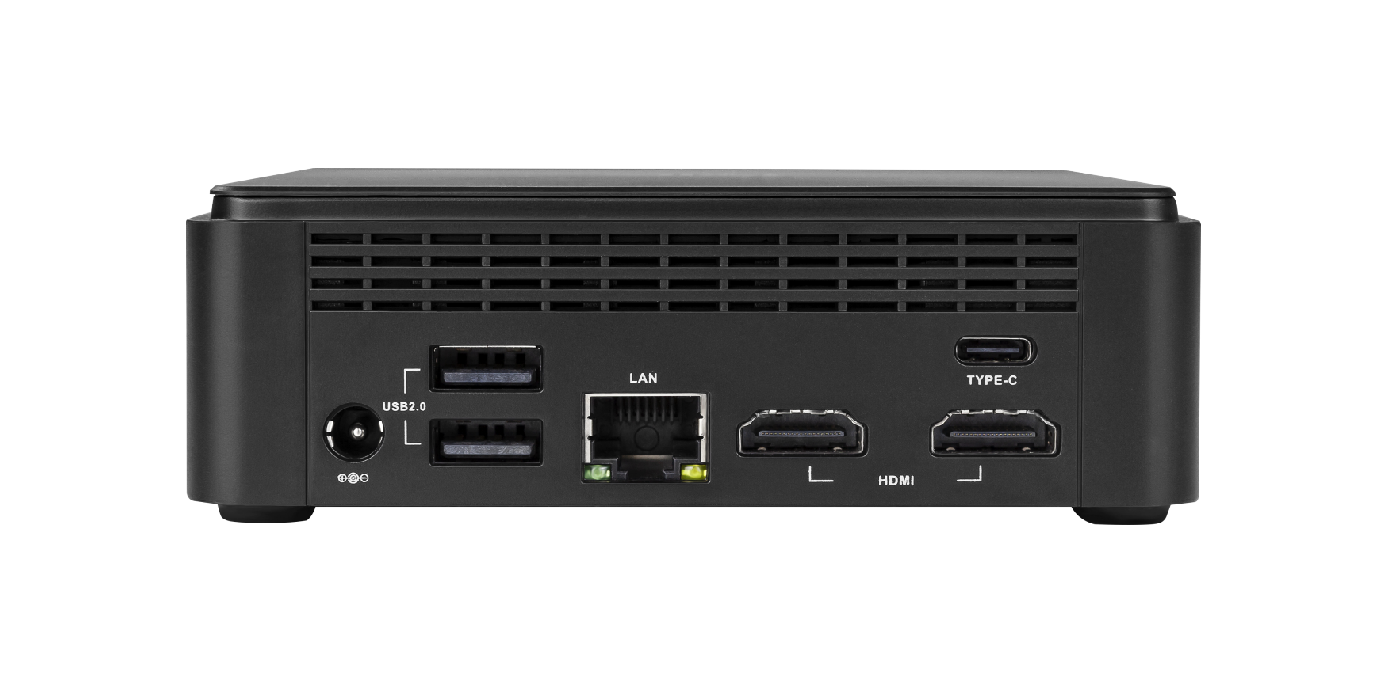

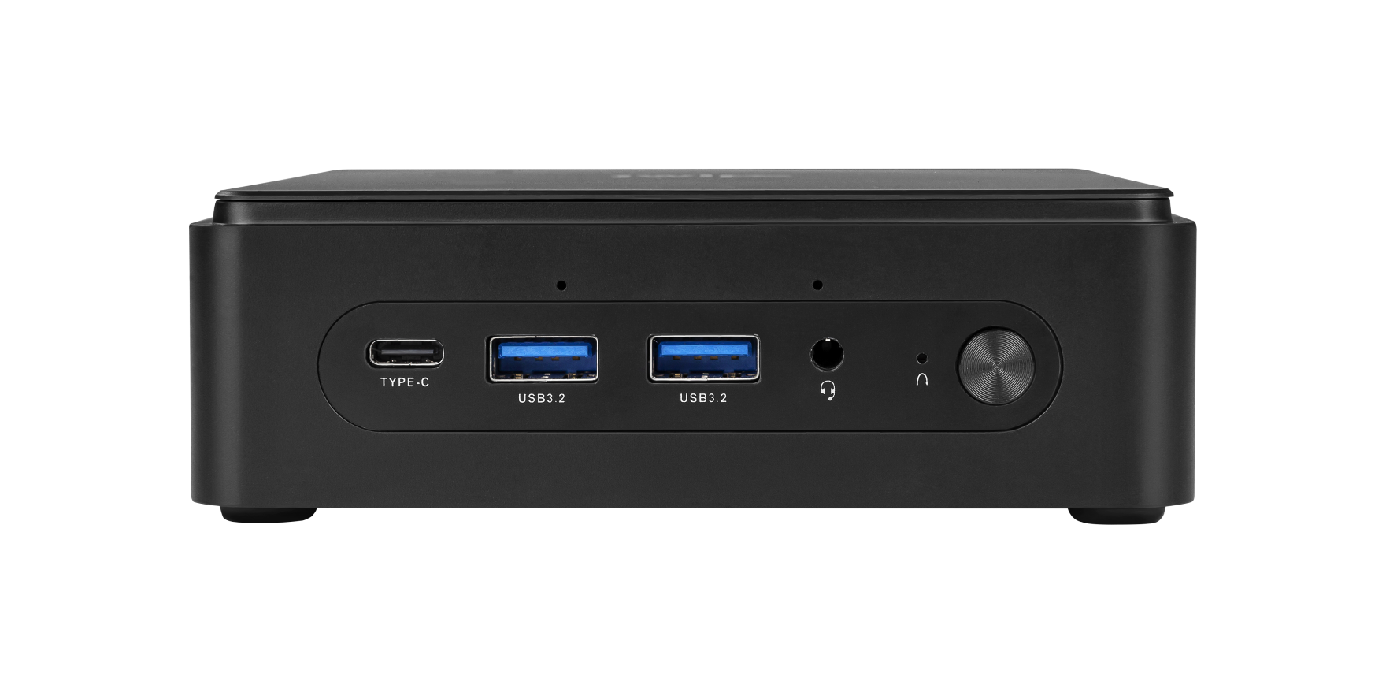

N105

低功耗迷你PC电脑

采用 Intel Adler Lake-N处理器，具备丰富的外部接口，广泛应用于高效办公，教育，政务等。

•: 基于Intel Alder Lake-N平台处理器 1 x SO-DIMM DDR4，Max 16GB 1 x M.2 2280 KEY-M for SATA/PCIE SSD 1 x M.2 2230 KEY-E for WIFI/BT 1 x Gigabit Lan 2 x USB3.2 (10Gbps)，2 x USB2.0 显示：2 x HDMI，1 xDP1.4 （From TYPE-C）支持 TPM2.0（可选）

留言咨询业务咨询

规格参数

CPU	CPU	Intel® 12th Gen (Alder Lake N ) Celeron™ Processors
CPU	TDP	Up to 15W
Display	Graphic card	Intel® UHD Graphics
	Multi displays	Support 3 Displays
	Interface	2 x HDMI-Out, 1 x DP (from TYPE-C)
Network	Lan IC	1 x Realtek Lan IC
	Lan Interface	10/100/1000Mbps
	Lan Connector	1 x RJ45 Port
	Wireless Type	WIFI5
	Wireless Interface	M.2 2230 Key E With PCIe,USB2.0
	4G/5G	N/A
I/O interface	Serial Port	N/A
	USB	2 x USB3.2（Gen2），2 x USB2.0， 2 x TYPE-C (USB3.2 Gen2)
	Button	1 x PowerButton, 1 x Clear CMOS Key
	SIM CARD	N/A
	AUDIO	1 x 3.5mm Audio Jack (2 In 1)
	POWER	1 x 2.5/5.5 DC-IN Connector
System	Memory	1 x SODIMM DDR4 3200Mhz，Max 16GB
	Storage	1 x M.2 Key M 2280 for NVME/SATA SSD
	OS	Windows 11/Linux
	WatchDog	Support
	Auto Power On	Support
	RTC	Power on at specific time everyday
	Power Input	19v DC-In (2.5/5.5 DC Jack)
	Dimension	120mm(L) x 120mm(W) x 37mm(H)
	Operating Temp.	0~40℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	5%~95% non-condensing
